CNG Manual Filling valves NGV1 type are homologated in accordance with the European Regulation ECE R110.
They are available in two different models:
STANDARD type, with manual tap and non-return valve, available with NGV1 and NGV1 ITALIA connectors

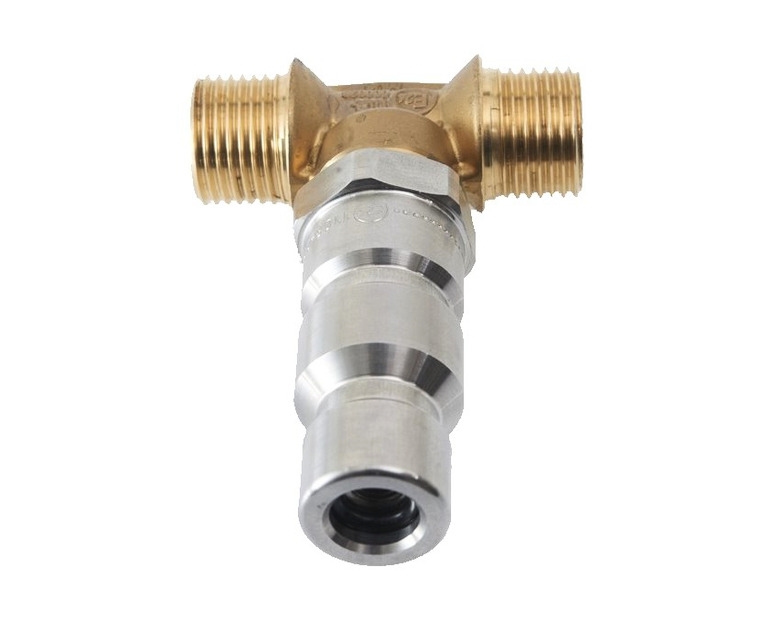

"T" type, without manual tap, with non-return valve, available with NGV1 and NGV1 ITALIA connectors.
|
CNG FILLING VALVE |
MANUAL NGV1 STANDARD |
MANUAL NGV1 "T" BODY |
|
Material |
Hot forged brass CNC machined |
Hot forged brass CNC machined |
|
Weight |
0.48 kg |
0.35 kg |
|
Type of product |
CNG manual filling valve |
CNG filling valve |
|
Max. working pressure |
26.0 MPa |
26.0 MPa |
|
Working temperature |
-40 °C / 120 °C |
-40 °C / 120 °C |
|
Manual tap,Opening/closing angle |
900° (270° upon request) |
- |
|
Non return valve |
yes |
yes |
|
Pipe Connection |
M12x1 pipe Ø 6 mm |
M12x1 pipe Ø 6 mm |
|
External Connection |
G 1/2'' |
G 1/2'' |
|
Filling Connection |
NGV1, NGV1 ITALIA |
NGV1, NGV1 ITALIA |
